Ms. Shelby Luo
ماذا يمكنني أن أفعل لك؟
| الدفع نوع: | T/T,D/P,D/A |
| إنكوترم: | FOB,CFR,CIF,EXW,FAS,FCA,DDP,DDU |
| أدني كمية الطلب: | 100 Kilogram |
| نقل: | Ocean,Land,Air,Express |
| ميناء: | Shenzhen,Guangzhou |
الظل:

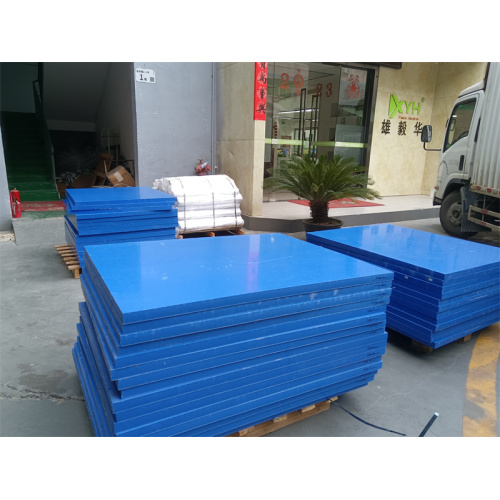

نموذج: PA6 Nylon Sheet
علامة تجارية: XYH
Origin: الصين
شهادة: ISO9001
مكان المنشأ: الصين
Material: PA6 Nylon
Product Type: Engineering Plastic Sheet
Color: Natural / Blue / Green / Custom
Shape: Sheet / Plate
Density: Approx. 1.14 g/cm³
Operating Temperature: -40°C to +100°C
Tensile Strength: ≥75 MPa
Impact Strength: High Impact Resistance
Wear Resistance: Excellent
Water Absorption: Low to Medium
Friction Coefficient: Low Friction Performance
Machining Method: CNC Milling, Turning, Cutting, Drilling
Surface Finish: Smooth Machined Surface
Applications: Gears, Bushings, Wear Pads, Guide Rails, Rollers
Custom Service: Cutting & CNC Machining Available
| بيع الوحدات | : | Kilogram |
| نوع الحزمة | : | البليت |
The file is encrypted. Please fill in the following information to continue accessing it
| Item | What we supply |
| Standard sheet size | 1000 × 2000 mm / 1220 × 2440 mm (approx. 4 × 8 ft) |
| Thickness | 5 mm to 100 mm (0.20 to 3.94 in) |
| Length and width | Cut to your dimensions |
| Colors | Natural white, black, blue, green, red |
| Custom colors | Available, subject to minimum quantity |
| Surface | Smooth both sides, or brushed one side |
| Material options | Extruded PA6, cast PA6, PA6-GF30, MOS2-filled, oil-filled |
| Property | Typical value |
| Density | 1.14 g/cm³ (0.041 lb/in³) |
| Tensile strength | 75–85 MPa (11–12 ksi) |
| Tensile modulus | 2.8–3.2 GPa |
| Elongation at break | 30–50% |
| Flexural strength | 110–130 MPa |
| Notched Charpy impact | 4–6 kJ/m² |
| Ball indentation hardness | 150–170 N/mm² |
| Melting point | 220–225 °C (428–437 °F) |
| Continuous service temperature | Up to 100 °C (212 °F) |
| Water absorption, 24 h at 23 °C | 1.5–2.0% |
| Saturation water absorption | 2.5–3.0% |
| Coefficient of linear expansion | 80 × 10⁻⁶ /K |
| Dielectric strength | 30–35 kV/mm |
